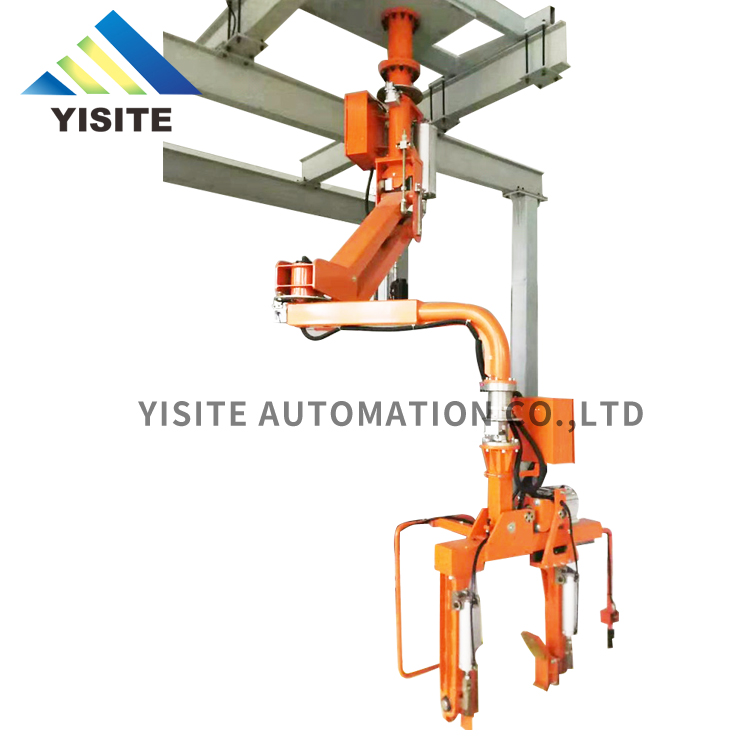

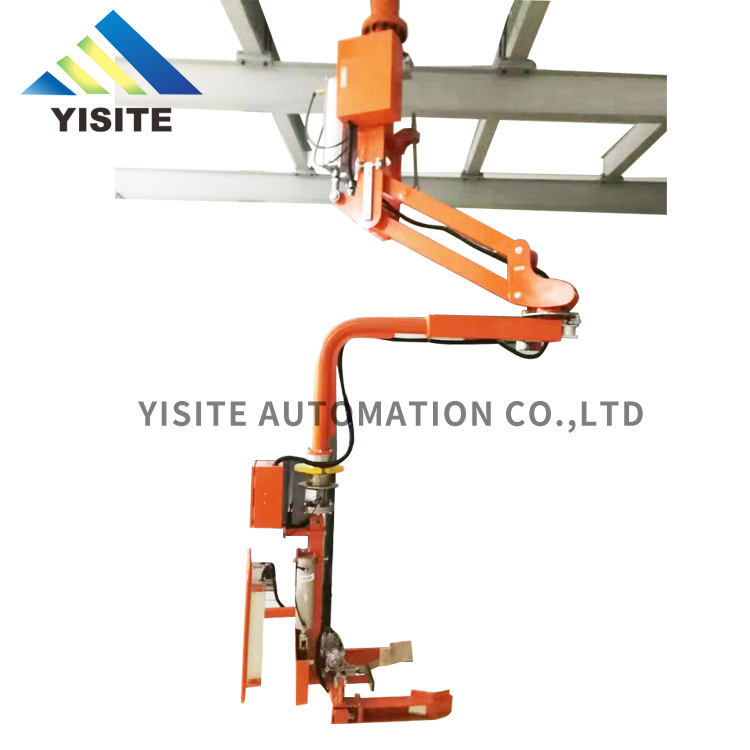

ukumiswa kweJib Cranes Manipulator
Incazelo emfushane:

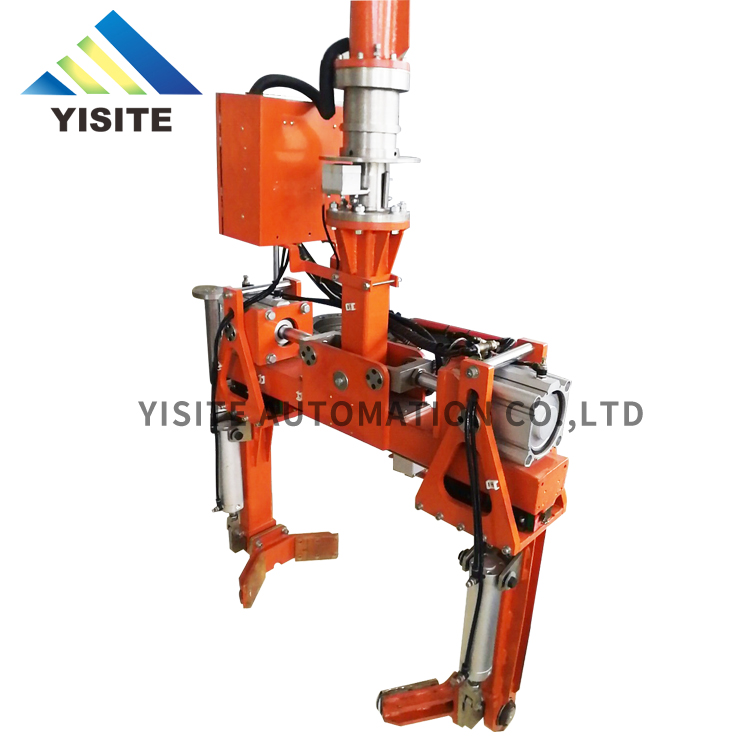

I-suspension booster manipulator iqukethe isisekelo sokufaka, i-host host kanye nensimbi yengalo yensimbi, fixture.Ingalo eyinhloko ingazungezwa ngamadigri angu-360, induku yengalo yesibili ingaphendukiswa ngama-degree angu-270 ukuze kuzuzwe uhla lokusebenza lokuhlanganisa, futhi ukujikeleza kungangeza I-brake mechanism.Ifanele ukuphatha imvamisa ephezulu, ukumiswa, ukuhlanganisa izingxenye nezinye izikhathi.
Mayelana NATHI
Singumkhiqizi wemishini ezenzakalelayo eyenziwe ngokwezifiso. Imikhiqizo yethu ihlanganisa i-depalletizer, umshini wokupakisha nokupakisha, i-palletizer, uhlelo lokusebenza lokuhlanganisa amarobhothi, ukulayisha nokuthulula ama-manipulators, ukwakheka kwebhokisi, ukuvalwa kwebhokisi, i-pallet dispensper, umshini wokugoqa nezinye izixazululo ezizenzakalelayo zomugqa wokukhiqiza wokupakisha ongemuva.
Indawo yethu yemboni icishe ibe ngamamitha-skwele ayi-3,500. Ithimba lezobuchwepheshe eliyinhloko linesipiliyoni seminyaka engu-5-10 kumishini eshintshashintshayo, okuhlanganisa onjiniyela bokudizayina bemishini abangu-2. Unjiniyela wezinhlelo ongu-1, abasebenzi abangu-8 bomhlangano, abantu abangu-4 abalungisa amaphutha ngemva kokuthengisa, kanye nabanye abasebenzi abayi-10
Isimiso sethu "ikhasimende kuqala, ikhwalithi kuqala, idumela kuqala", sihlala sisiza amakhasimende ethu "ukukhulisa umthamo wokukhiqiza, ukunciphisa izindleko, nokuthuthukisa ikhwalithi" silwela ukuba umphakeli ophezulu embonini yemishini ezenzakalelayo.
Izici zomkhiqizo
Ngokuthola inkomishi yokuncela noma ukuphela kwe-manipulator nokulinganisa ukucindezela kwegesi kusilinda, ingakwazi ukukhomba ngokuzenzakalelayo umthwalo engalweni engumshini, futhi ilungise ngokuzenzakalelayo ukucindezela komoya kusilinda ngokusebenzisa isifunda sokulawula i-pneumatic logic, ukuze kuzuzwe inhloso yebhalansi ezenzakalelayo.Uma isebenza, izinto ezisindayo zifana nokulengiswa emoyeni, okungagwema ukungqubuzana kokumiswa komkhiqizo.Ngaphakathi kwebanga lokusebenza lengalo yomshini, u-opharetha angakwazi ukuyibuyisela emuva, kwesokunxele naphansi kunoma iyiphi indawo. isikhundla, futhi umuntu ngokwakhe angasebenza kalula.Ngasikhathi sinye, isekethe yomoya nayo inemisebenzi yokuvikela iketango njengokuvikela ukulahleka kwento ngengozi kanye nokuvikela ukulahleka komfutho.
Umgomo wokusebenza kanye nemodi ye-suspension power manipulator:
Ngokuthola inkomishi yokuncela noma ukuphela kwe-manipulator nokulinganisa ukucindezela kwegesi kusilinda, ingakwazi ukukhomba ngokuzenzakalelayo umthwalo engalweni engumshini, futhi ilungise ngokuzenzakalelayo ukucindezela komoya kusilinda ngokusebenzisa isifunda sokulawula i-pneumatic logic, ukuze kuzuzwe inhloso yokulinganisa okuzenzakalelayo.Lapho kusebenza, izinto ezisindayo zifana nokulengiswa emoyeni, okungagwema ukushayisana komkhiqizo.Ngaphakathi kwebanga lokusebenza lengalo yomshini, u-opharetha angakwazi ukuyibuyisela emuva, kwesokunxele naphansi kunoma iyiphi indawo. , futhi umuntu ngokwakhe angasebenza kalula.Ngasikhathi sinye, isekethe yomoya nayo inemisebenzi yokuvikela iketango njengokuvimbela ukulahleka kwento ngengozi kanye nokuvikela ukulahleka komfutho.
Izici
Umthwalo omkhulu wokukhokhelwa. 900Kg
Irediyasi enkulu yesenzoUkuphakama: 4500 mm
Ukuhamba Okuqondile: 0,5m/min
Isistimu yokulawulaUkuphakama: 2200 mm
Isistimu yokulawula: umoya unomoya ogcwele
Ukunikezela: umoya ocindezelwe (40 µm), awuqukethe amafutha
Ingcindezi yokusebenza: 0.7 ÷ 0.8 Mpa
Izinga lokushisa lokusebenzaUkushisa: +0 kuya +45° C
Umsindo:ukusetshenziswa komoya: 100 Nl ÷ 400 N umjikelezo ngamunye
Ukuzungezisa: I-shaft yekholomu kanye ne-fixture shaft engu-360° ukuzungezisa okuqhubekayo, i-shaft emaphakathi 300° ukuzungezisa okuqhubekayo
